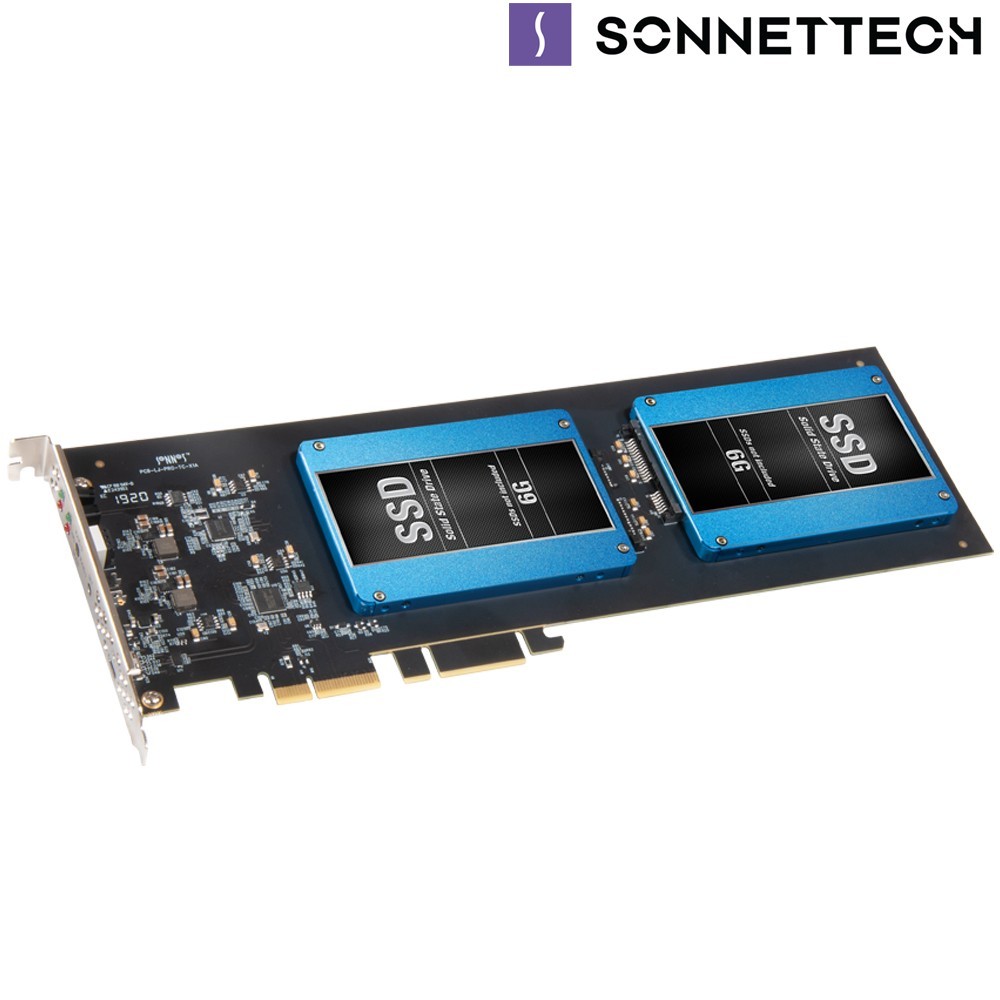

The Sonnet Fusion Dual 2.5-inch SSD RAID card is a full-height, full-length PCIe 3.0 x2 card that allows up to two 2.5-inch SATA SSDs to be installed, providing up to 16TB of storage. This is an advanced storage solution, which integrates a hardware RAID controller, supporting RAID 0, RAID 1, Span and JBOD configurations. It offers transfer speeds of up to 1000MB/s and features a 10Gbps USB-C 3.2 Gen 2 port that adds an additional option for fast connectivity to other storage media. Compatible with macOS, Windows and Linux systems, it is ideal for enhancing performance and storage capacity in a variety of environments. In addition, the card has advanced features such as TRIM and SMART support, which help maintain SSD performance over time and monitor SSD health.
Avacab Authorized Reseller
Sonnet Fusion Dual 2,5" SSD RAID - 2 SATA SSD slots up to 16TB
SON-FUS-SSD-2RAID-E
The Sonnet Fusion Dual 2.5-inch SSD RAID card is a full-height, full-length PCIe 3.0 x2 card that allows up to two 2.5-inch SATA SSDs to be installed, providing up to 16TB of storage. This is an advanced storage solution, which integrates a hardware RAID controller, supporting RAID 0, RAID 1, Span and JBOD configurations. It offers transfer speeds of up to 1000MB/s and features a 10Gbps USB-C 3.2 Gen 2 port that adds an additional option for fast connectivity to other storage media. Compatible with macOS, Windows and Linux systems, it is ideal for enhancing performance and storage capacity in a variety of environments. In addition, the card has advanced features such as TRIM and SMART support, which help maintain SSD performance over time and monitor SSD health.
Avacab Authorized Reseller
€145.00
Tax excluded
175,45 €
Con IVA
 |
| Avacab Authorized Reseller |
Up to 16TB of SSD storage in a single expansion slot
The Sonnet Fusion Dual 2.5" SSD RAID PCIe card is an advanced solution for enhancing storage capacity and performance in systems requiring high speed and reliability. This card allows the installation of up to two 2.5" SATA SSDs, providing a total storage capacity of up to 16TB. The integration of a hardware RAID controller offers various RAI configurations, including RAID 0, RAID 1, Span and JBOD.
In RAID 0 configuration, data is distributed between the two SSDs, maximising read and write speeds. This configuration is ideal for tasks that require extremely high performance, such as video editing and processing large volumes of data. However, it does not provide data redundancy; if one drive fails, all data will be lost.
RAID 1, on the other hand, focuses on data security through mirroring. Data is copied to both SSDs, ensuring that if one drive fails, the data will still be available on the other. This configuration is essential for critical applications where data integrity is paramount, yet the total available capacity is halved.
The Span configuration combines the capacities of the two SSDs into a single logical volume, allowing the use of the full space of both drives without splitting the data between them as in RAID 0. This option is useful when a large volume of storage is needed without requiring the extreme speeds of RAID 0 or the redundancy of RAID 1.
JBOD, which stands for "Just A Bunch Of Disks", allows the two SSDs to be used independently. This configuration provides maximum flexibility, allowing each drive to be managed separately, which is useful in situations where different applications or users need access to separate storage drives.
The card's design enables data transfer speeds of up to 1000 MB/s, making it ideal for applications that require high read and write speeds, such as video editing, processing large volumes of data, and running virtual machine environments. In addition, the inclusion of a 10Gbps USB-C 3.2 Gen 2 port provides an additional option for fast and versatile connectivity.
Compatible with macOS, Windows and Linux operating systems, the Sonnet Fusion Dual 2.5-inch SSD RAID PCIe card is a flexible and powerful tool for a wide variety of environments. Its compact design allows for installation in a single PCIe 3.0 slot, optimising space utilisation within the computer chassis and facilitating integration into workstations, servers and other advanced computing systems.
In addition, the card has advanced features such as TRIM and SMART support, which help maintain SSD performance over time and monitor SSD health. The card also includes easy-to-use RAID management software, which allows SSDs and RAID configurations to be easily configured and monitored.
In summary, the Sonnet Fusion Dual 2.5-inch SSD RAID is an ideal solution for those who need to significantly increase the storage capacity and performance of their computer systems, offering a combination of high speed, flexibility and ease of use.
In RAID 0 configuration, data is distributed between the two SSDs, maximising read and write speeds. This configuration is ideal for tasks that require extremely high performance, such as video editing and processing large volumes of data. However, it does not provide data redundancy; if one drive fails, all data will be lost.
RAID 1, on the other hand, focuses on data security through mirroring. Data is copied to both SSDs, ensuring that if one drive fails, the data will still be available on the other. This configuration is essential for critical applications where data integrity is paramount, yet the total available capacity is halved.
The Span configuration combines the capacities of the two SSDs into a single logical volume, allowing the use of the full space of both drives without splitting the data between them as in RAID 0. This option is useful when a large volume of storage is needed without requiring the extreme speeds of RAID 0 or the redundancy of RAID 1.
JBOD, which stands for "Just A Bunch Of Disks", allows the two SSDs to be used independently. This configuration provides maximum flexibility, allowing each drive to be managed separately, which is useful in situations where different applications or users need access to separate storage drives.
The card's design enables data transfer speeds of up to 1000 MB/s, making it ideal for applications that require high read and write speeds, such as video editing, processing large volumes of data, and running virtual machine environments. In addition, the inclusion of a 10Gbps USB-C 3.2 Gen 2 port provides an additional option for fast and versatile connectivity.
Compatible with macOS, Windows and Linux operating systems, the Sonnet Fusion Dual 2.5-inch SSD RAID PCIe card is a flexible and powerful tool for a wide variety of environments. Its compact design allows for installation in a single PCIe 3.0 slot, optimising space utilisation within the computer chassis and facilitating integration into workstations, servers and other advanced computing systems.
In addition, the card has advanced features such as TRIM and SMART support, which help maintain SSD performance over time and monitor SSD health. The card also includes easy-to-use RAID management software, which allows SSDs and RAID configurations to be easily configured and monitored.
In summary, the Sonnet Fusion Dual 2.5-inch SSD RAID is an ideal solution for those who need to significantly increase the storage capacity and performance of their computer systems, offering a combination of high speed, flexibility and ease of use.
PCIe Fusion Dual 2.5" SSD RAID Multifunction PCIe Fusion Card Features
- Up to 16TB of ultra-fast storage: Mounts up to two 8TB SATA 2.5" 6Gb/s SSDs (sold separately)
- Full height, full length PCIe card
- PCI Express 3.0 x2 interface
- RAID Support: Supports RAID 0, 1, Span and JBOD on macOS, Windows and Linux.
- USB-C 3.2 Gen 2 10Gbps Port
- Support for USB-C 10Gbps, USB-C 5 Gbps, Thunderbolt 3 40 Gbps (50 and 70cm)
- Superior performance: Achieve sustained speeds of up to 1,000 MB/s using Thunderbolt 3
- S.M.A.R.T. operation.
Data sheet
- Recording/Storage Media
- Discos SSD
- Connector A
- USB-C
- Compatible
- Blackmagic
vMix
|
| Avacab Authorized Reseller |
Product Manual Sonnet Fusion Dual 2,5" SSD RAID
