The Areca ARC-8050T3U-8 is a professional 8-bay RAID enclosure featuring dual Thunderbolt 3 ports and an integrated DisplayPort—perfect for audio and video editing workflows on both Mac and Windows. Compatible with 12Gb/s SAS and 6Gb/s SATA drives, it incorporates an advanced dual-core ROC processor for high speed and data protection. Its DDR3/DDR4 SDRAM and support for RAID 0, 1, 10, 3, 5, 6, 30, 50, 60, Single Disk, and JBOD deliver maximum flexibility, sustained performance, and security. Ideal for studios and professionals demanding scalable storage and ultra-fast connectivity.
Avacab Authorized Distributor

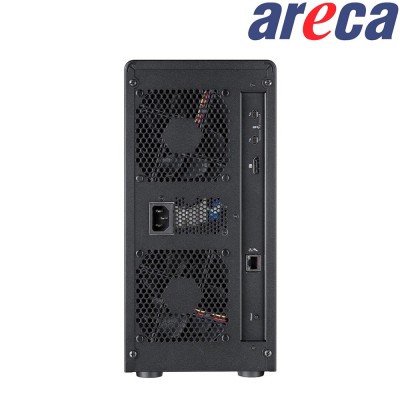

Areca ARC-8050T3U-8 8-Bay SATA 2.5"/3.5" 12Gbps RAID Storage
ARC-8050T3U-8
The Areca ARC-8050T3U-8 is a professional 8-bay RAID enclosure featuring dual Thunderbolt 3 ports and an integrated DisplayPort—perfect for audio and video editing workflows on both Mac and Windows. Compatible with 12Gb/s SAS and 6Gb/s SATA drives, it incorporates an advanced dual-core ROC processor for high speed and data protection. Its DDR3/DDR4 SDRAM and support for RAID 0, 1, 10, 3, 5, 6, 30, 50, 60, Single Disk, and JBOD deliver maximum flexibility, sustained performance, and security. Ideal for studios and professionals demanding scalable storage and ultra-fast connectivity.
Avacab Authorized Distributor
€1,726.45
Tax excluded
2.089,00 €
Con IVA
- Delivery time 3-4 days approx.
 |
| Avacab Authorized Distributor |
The Areca ARC-8050T3U-8 is a high-performance 8-bay RAID system, aimed at professionals who require large capacity, speed, and flexibility for demanding editing and data storage, whether on Mac or Windows.
Thunderbolt 3 and USB 3.2 Gen2 Connectivity: Featuring two high-speed Thunderbolt™ 3 ports, the ARC-8050T3U-8 allows for ultra-fast data transfers (up to 40Gbps) and daisy-chaining of additional devices. Its DisplayPort simplifies the connection of 4K monitors without using a Thunderbolt port. Combined with USB 3.2 Gen2, it ensures maximum compatibility with Windows, macOS, and Linux systems, offering total flexibility for any workflow.
Maximum Storage Flexibility and Compatibility: The ARC-8050T3U-8 supports 12Gb/s SAS or 6Gb/s SATA drives, in 6, 8, or 12-bay configurations (T3U-6M / T3U-8 / T3U-12 / T3U-12E models). This makes it adaptable to projects of varying sizes, optimizing both space and budget. Its compact design (146 x 302 x 290 mm) and 6.8kg weight make it ideal for fixed studios and professionals on the go.
Advanced ROC Processor and High-Performance Memory: The RAID controller features dual-core processors at 1.2GHz or ARM A15 1.6GHz (depending on model) and up to 8GB DDR4-2666 SDRAM, ensuring multitasking, complex RAID setups, and bottleneck-free transfers. Tri-Mode design supports SAS, SATA, and NVMe SSDs (T3U-12E), enabling future expansion.
Professional RAID Management: Supporting major RAID levels (0, 1, 10, 3, 5, 6, 30, 50, 60), Single Disk, and JBOD, it provides maximum protection against drive failures, automatic repairs, fast rebuilds, and advanced monitoring. Areca's management software and alerts make volume management intuitive via any web browser or custom GUI/app.
Security and Energy Efficiency: The ARC-8050T3U-8 has two 2,700rpm fans and a dual 300W power supply for stable, efficient operation. Energy-saving modes minimize idle consumption, protecting both drives and the environment.
Ideal for Creative Professionals and Workgroups: It is the ideal solution for professional video/audio editing (4K/8K), large backups, virtualization, and file servers in companies and post-production, always guaranteeing data integrity, speed, and high availability. Expansion is possible with additional network cards—thanks to Thunderbolt and USB-based architecture.
Compatibility and Ease of Use: The Areca ARC-8050T3U-8 works with macOS 10.12 or later and Windows 8/10 or later (Thunderbolt 3); with USB, it is OS-independent. No additional drivers are needed—installation and setup take minutes, ensuring fast integration into media studios, architectural offices, photography companies, or datacenters.
Key Features Summary:
- 8 bays for 12Gb/s SAS or 6Gb/s SATA drives
- Dual Thunderbolt 3 and USB 3.2 Gen2 ports for maximum connectivity
- DisplayPort+ for direct 4K monitor connection
- Advanced hardware RAID: 0, 1, 10, 3, 5, 6, 30, 50, 60, Single Disk, JBOD
- ROC Dual Core 1.2GHz or ARM A15 1.6GHz processors with up to 8GB DDR4 SDRAM
- Areca Web GUI RAID management: monitoring, alerts, smart rebuilds
- Robust, energy-efficient design
- Compatible with macOS, Windows, and Linux; OS-independent with USB
- Ideal for professional editing, enterprise backup, and collaborative environments
Data sheet
- Power
- DC
- Recording/Storage Media
- Discos HDD
Discos SSD - Compatible
- Blackmagic
vMix
What is the Areca ARC-8050T3U-8 and what is it used for?
The Areca ARC-8050T3U-8 is a high-end hardware RAID storage enclosure. It is designed to accommodate up to 8 hard drives or SSDs (12Gb/s SAS or 6Gb/s SATA) and connect to a computer via Thunderbolt 3 or USB 3.2 Gen 2 ports. Its main function is to create high-performance storage volumes with data redundancy, ideal for professional workflows such as 4K/8K video editing, audio post-production, and large data backups.
What types of RAID configurations does it support?
The ARC-8050T3U-8 supports a wide variety of hardware RAID levels, including:
RAID 0: For maximum performance, without redundancy.
RAID 1: For data mirroring, with one-disk redundancy.
RAID 10: Combines performance and redundancy.
RAID 3, 5, 6: Offer data protection with parity.
RAID 30, 50, 60: Nested RAID combinations for increased capacity and security.
Single Disk and JBOD (Just a Bunch Of Disks): For using disks independently or as a single large volume without RAID.
RAID 1: For data mirroring, with one-disk redundancy.
RAID 10: Combines performance and redundancy.
RAID 3, 5, 6: Offer data protection with parity.
RAID 30, 50, 60: Nested RAID combinations for increased capacity and security.
Single Disk and JBOD (Just a Bunch Of Disks): For using disks independently or as a single large volume without RAID.
What performance can I expect from this RAID enclosure?
The Areca enclosure's performance is exceptional thanks to its hardware RAID controller and Thunderbolt 3 interface. Speeds may vary depending on the RAID configuration, type, and number of disks, but read/write transfer rates of over 800MB/s can be achieved, which is crucial for workflows with large files.
What kind of connectivity does it have?
The enclosure features:
Two Thunderbolt 3 ports: For connecting the device to a Mac or PC with Thunderbolt 3. One of these ports allows daisy-chaining of up to six Thunderbolt devices.
One USB 3.2 Gen 2 port: The Thunderbolt 3 port also functions as a USB-C 3.2 Gen 2 port when connected to a compatible computer, allowing it to be used on a wide range of systems.
One DisplayPort 1.4 port: Allows direct connection of a monitor, which is very useful in video editing setups.
One RJ-45 management port (Out-of-band): For remote management of the enclosure via the network without the need for software on the host computer.
One USB 3.2 Gen 2 port: The Thunderbolt 3 port also functions as a USB-C 3.2 Gen 2 port when connected to a compatible computer, allowing it to be used on a wide range of systems.
One DisplayPort 1.4 port: Allows direct connection of a monitor, which is very useful in video editing setups.
One RJ-45 management port (Out-of-band): For remote management of the enclosure via the network without the need for software on the host computer.
What software is needed to manage the enclosure?
The ARC-8050T3U-8 is managed using the following tools:
ArcSAP utility: This is a software application that allows you to monitor and manage the RAID enclosure from the host operating system (macOS or Windows).
Web GUI (web browser management): The enclosure includes an integrated web server that can be accessed from a browser. This interface allows you to perform all RAID configurations, monitor disk and system status, and manage notifications. It can be accessed both “in-band” (via the Thunderbolt/USB connection) and “out-of-band” (via the RJ-45 port).
Web GUI (web browser management): The enclosure includes an integrated web server that can be accessed from a browser. This interface allows you to perform all RAID configurations, monitor disk and system status, and manage notifications. It can be accessed both “in-band” (via the Thunderbolt/USB connection) and “out-of-band” (via the RJ-45 port).
What does “hardware RAID” mean?
A hardware RAID controller, such as Areca's, has its own processor (a RAID-on-Chip or ROC processor) and memory (ECC SDRAM). This means that the creation and management of the RAID array is done directly in the enclosure, offloading this task from the computer's main processor. The result is better performance, greater stability, and more robust data protection. This differs from software RAID, which uses the computer's processor and memory to manage the disks.
Is it compatible with macOS and Windows?
Yes, it is compatible with both operating systems. It requires the installation of Areca drivers and management software. For the Thunderbolt connection, macOS 10.12 or higher and Windows 8/10 or higher are required. The USB connection is independent of the operating system.
What should I do if a hard drive fails?
The Areca ARC-8050T3U-8 enclosure is designed for redundancy and recovery. In the event of a drive failure in a redundant RAID configuration (such as RAID 5 or 6), the volume will continue to operate in a degraded state. The enclosure will emit an audible and visual alert (on the LCD screen) to notify you of the failure. Simply remove the defective drive and replace it with a new one. The RAID controller will automatically start the “rebuild” process, which copies the parity data to the new drive to restore redundancy.
Can I mix SAS and SATA drives?
The Areca ARC-8050T3U-8 RAID controller supports both 12Gb/s SAS hard drives and 6Gb/s SATA drives. However, it is not recommended to mix both types of drives within the same RAID configuration to avoid potential performance and compatibility issues. It is best to use drives of the same type, brand, and capacity for optimal performance and easier management.
