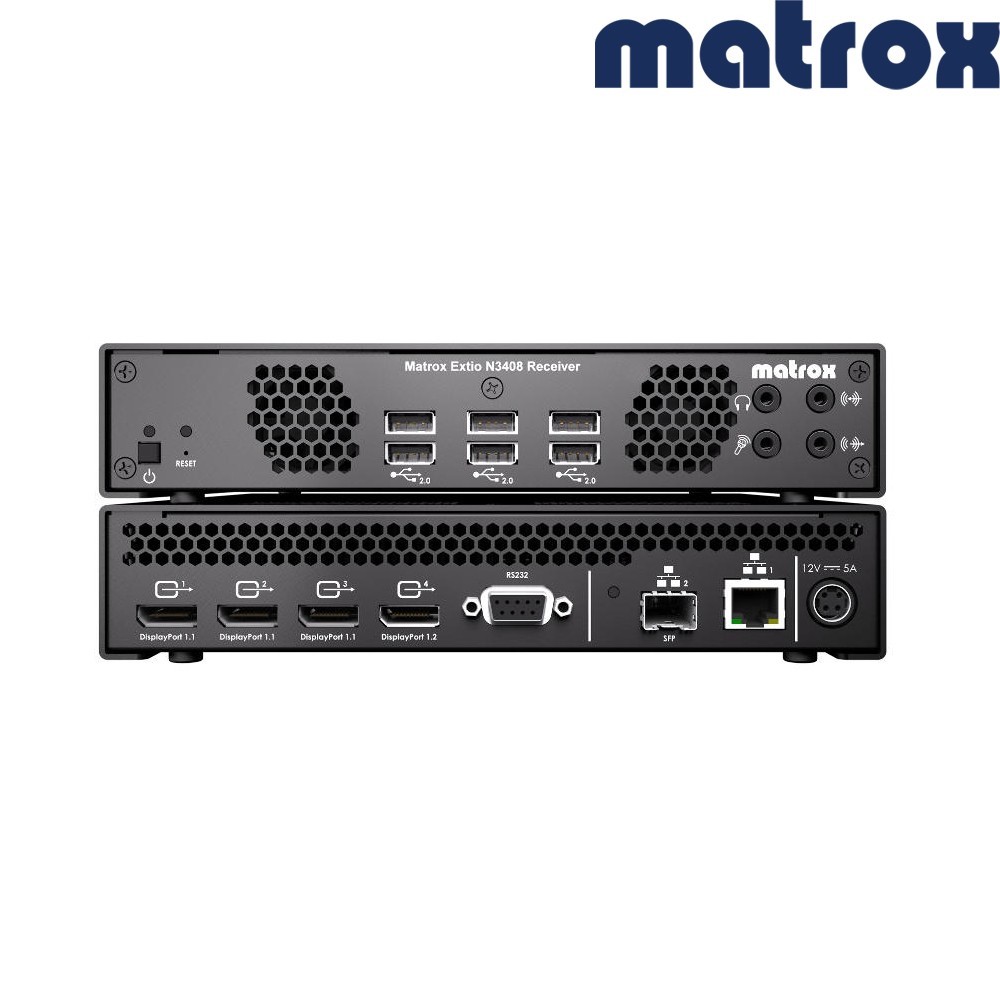

Matrox Extio N3408RX 4x DisplayPort IP KVM Receiver

The Matrox Extio N3408 Receiver Appliance is an advanced KVM IP extension and switching solution, engineered for mission-critical environments. It receives up to four 4K DisplayPort signals or multiple Full HD sources over standard networks, with full USB 2.0, bidirectional audio and serial control support.

Professional outputs and connectivity

Features four DisplayPort outputs (3x DP 1.1, 1x DP 1.2), HDMI support (via adapter), six USB 2.0 Type A ports for peripherals (keyboard, mouse, touch, storage, smart card, audio), stereo audio outputs (line/headphone, 3.5 mm jacks), and RS-232 serial output. Network connection via RJ45 and SFP for copper or fiber redundancy.

Performance, reach, and redundancy

Delivers 4K multi-monitor or flexible mixed-display output (including pivoted screens), up to 100 m over Cat6 copper or 10 km via single-mode fiber. Designed for max reliability with dual network inputs and secure external power supply connection.

Comprehensive USB, audio, and control

Supports high-speed USB 2.0 professional HID devices, storage, smart card/CAC readers, and industrial devices. Dual-channel audio ensures real-time bidirectional digital/analog audio streams, with integrated serial for automation and system control.

Flexible installation and centralized management

1U half-width rackmount, status LEDs, and power/reset buttons. Fully managed via Extio Central Manager software, enabling remote device and session configuration in large deployments with ease.

Recommended applications

Perfect for control rooms, command centers, industry, data centers, labs, remote desktop management, and any deployment demanding top flexibility, security, and performance in KVM-over-IP solutions.
