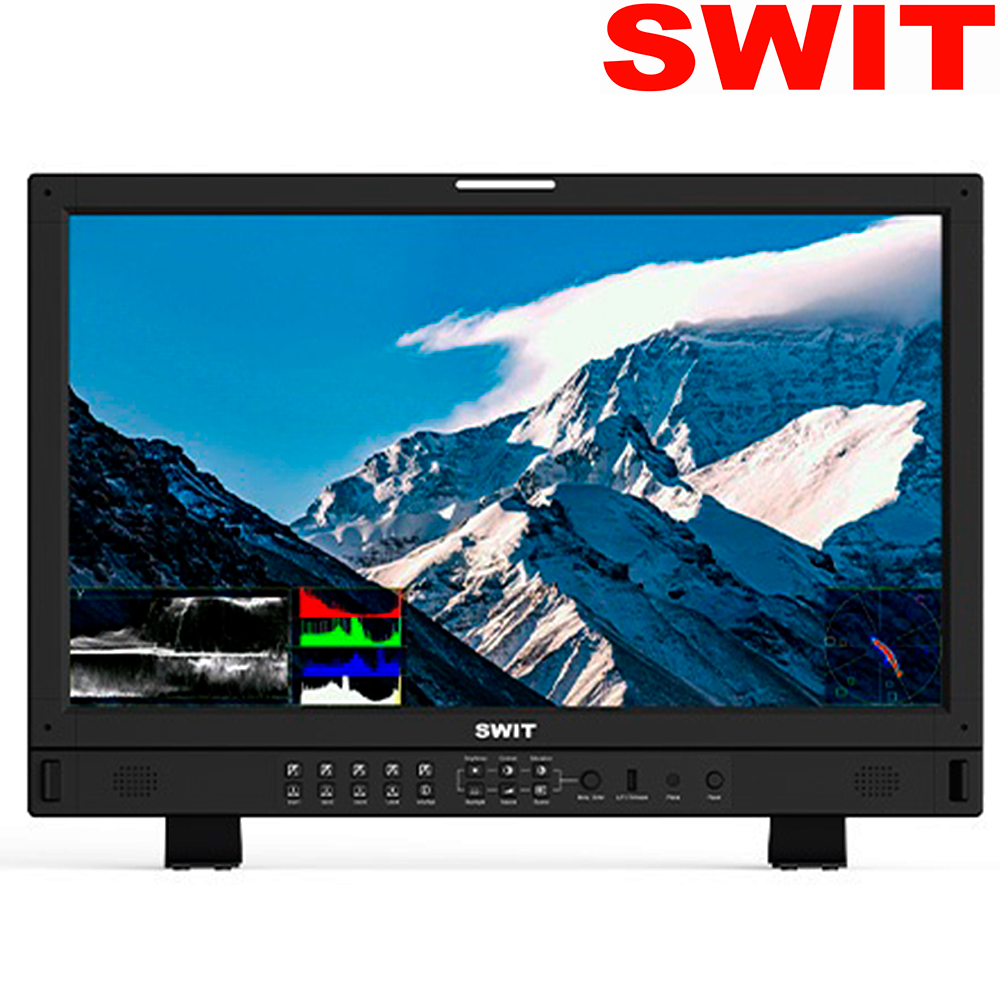

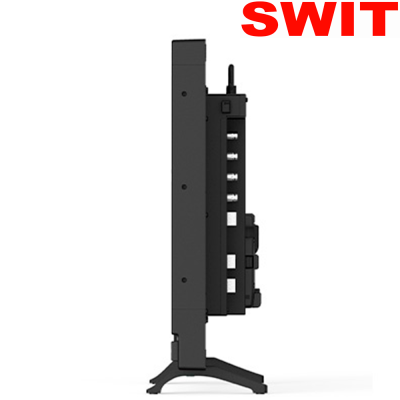

SWIT BM-U245 Studio Monitor 4k 23.8"

Avacab Authorized Reseller

Swit BM-U245 monitor features a 23.8-inch LCD panel, processes 4K UHD resolutions up to 3840x2160p, 300 nits brightness LED backlight, 1000:1 contrast, DCI-P3 colour gamut covering 94.1% and viewing angle is H178° / V178°.


Multi 4K/8K Interfaces

12G-SDI 4-in 4-out, supports:

• Single link 4K; Quad link 4K and Quad link 8K
• HDMI 2.0 (4K60P)
• 12GSDI vía Fiber SFP (Optional)
• ST2110 IP vía Fiber SFP (Otcional)

* The Quadlink 4K/8K supports both Quad mode and 2SI interleave mode;
* The SFP optical fiber adaptor is optional purchased.


Display modes

BM-U245 monitor supports Single link 4K input including 12G-SDI, HDMI2.0 or 12G-SDI via SFP, it also supports Quadlink 4x 3G-SDI 4K or 4x 12G-SDI 8K inputs.

It can also display 4 independent 4K videos in multiview, supports 12G/6G/3G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed format input, and waveform, vector, audio meters, EOTF, and colour gamut selection for each input.


HDR/SDR EOTFs

Swit BM-U245 supports HLG (Hybrid Log Gamma) monitoring, Dolby Vision PQ, Sony S-LOG3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOFTs and LCD panel colour gamut selection, BT.709, DCI-P3 and BT.2020.



3DLUT Auto Self-Calibration

With X-rite i1 or JETI Specbos 1211

• Calibration Time: X-rite i1 15min
• Specbos 1211 45min >Calibration Result: ΔE≤1.0

Dlog HDR/SDR LUTs

BM-U245 multi-camera monitor has multi-camera logs installed for HLG1000, PQ1000, Rec.709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm, etc. It can also import user 3DLUTs from a USB memory stick, supporting 17x17x17 3DLUT Cube files


Multiple HDR/SDR viewing

SWIT monitor allows to display a single input source copied into 4 windows, thus displaying the different HDR/SDR and colour gamut options simultaneously. This type of multiple viewing allows a better reference of the different image sampling options.


Autotuning of parameters

Using the ID contained in the signal, the monitor identifies the parameters of the received signal to automatically adjust HDR/SDR EOTFs, Colour Gamut, Input Range, Colour Space and Colour Depth.


Eye pattern

Built-in eye pattern to check the quality of the incoming video transmission over the SDI cable, especially the 12G-SDI quality.


Multiple Video Analysis Patterns

The monitor offers on-screen metering of all technical video and audio parameters and has built-in 3DLUT calibration software. It operates with zero video and audio latency and, if required, can be remotely controlled via a built-in IP web server.

Audio Patterns

The monitor allows the display of integrated audio meters, 16 channels maximum. In addition, it allows 2 audio channels to be selected for output via speaker or 3.5mm headphone jack. As a BM-H series monitor, it supports Lissajous figures and 5.1 and 7.1 surround patterns.


IP Remote Control

BM-U245 allows remote control via the built-in web server over an Ethernet LAN connection. Use your computer's web browser to open the monitor's control panel to select input sources, adjust picture parameters, configure video/audio functions and assign function keys, etc., without installing any APP.

SWIT BM-U245 Monitor features

• 23.8-inch LCD Panel, 3840×2160 resolution
• 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
• 12GSDI via SFP Fiber input (Optional)
• ST2110 IP via SFP Fiber input (Optional)
• 3DLUT Auto Self-calibration without PC
• Audio/Video 0 latency for lip-sync
• HLG/PQ/S-log3 HDR EOTF
• Payload ID auto setting
• Built-in Multi camera Delog LUTs
• User 3DLUTs upload via USB
• Waveform / Vector / Histogram
• Focus assist / False color / Zebra
• 16-ch audio meters / Lissajous
• IP webserver remote control
• TSL UMD and text TALLY display
• USB firmware upgrade
