The long shotgun microphone MKH8070 was especially designed for picking up distant sources of sound in best quality. Extremely weather-proof.

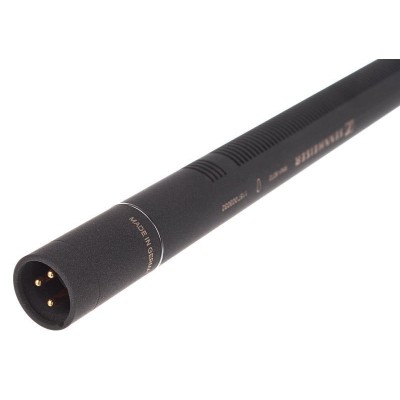

Sennheiser MKH 8070 Long Shotgun Condenser Microphone
SEN-MKH8070
The long shotgun microphone MKH8070 was especially designed for picking up distant sources of sound in best quality. Extremely weather-proof.
€1,271.00
Tax excluded
1.537,91 €
Con IVA
Long shotgun microphone specially designed to capture distant sound sources with the best quality. Its very natural sound makes it the ideal choice for large sporting and broadcasting events.
With extreme directivity and a pronounced lobe pickup pattern, it will reliably capture that magic moment from afar, even in the harshest sound and weather conditions.
The special design of the MKH 8070 ensures off-axis sound attenuation without colouration. Like all microphones of the 8000 family, it can easily be combined with the MZD 8000 digital module, making it a complete digital microphone.
Features of the Sennheiser MKH 8070 microphone
- Improved lobe pickup pattern
- Highly natural soundNon-colored sound off axis
- Extremely low inherent self-noise
- Extremely low distortion
- Transformerless and fully floating balanced output
- High output signalRobust metal housing
- Nextel anti-reflective coating
- Extremely weatherproof due to RF circuitry - Nextel
- Becomes a digital microphone when combined with the MZD 8000 digital module
- Timbrally identical to the other 8000-series microphones for optimal hearing compatibility
Data sheet
- Salidas Audio
- Balanceado
- Comunes
- Phantom
- Polar Pattern
- 8 Figure
- Tipo de Cápsula
- Condensador
Dimensions
diameter 19 mm, lenght 465 mm (432 mm excluding XLR module)
Transducer principle (Microphone)
RF condenser microphone
Frequency response
45 - 20000 Hz
Weight
332 g (300 g excluding XLR module)
Audio output
XLR-3M balanced, transformerless, floating
Pick-up pattern
lobar
Sensitivity in free field, no load (1kHz)
112 mV/Pa (-19 dBV/Pa)
Nominal impedance
25 Ohm
Min. terminating impedance
2000 Ohm
Phantom powering
48 V +/- 4 V
Equivalent noise level
8 dB
Equivalent noise level weighted as per CCIR 468-3
21 dB
Maximum sound pressure level (passive)
124 dB SPL
Current consumption
3,3 mA
