Double 3G/HD/SD-SDI to multimode fiber optic converter. LC connectors. Up to 700m over OM4 multimode fiber optic (300m over OM3)

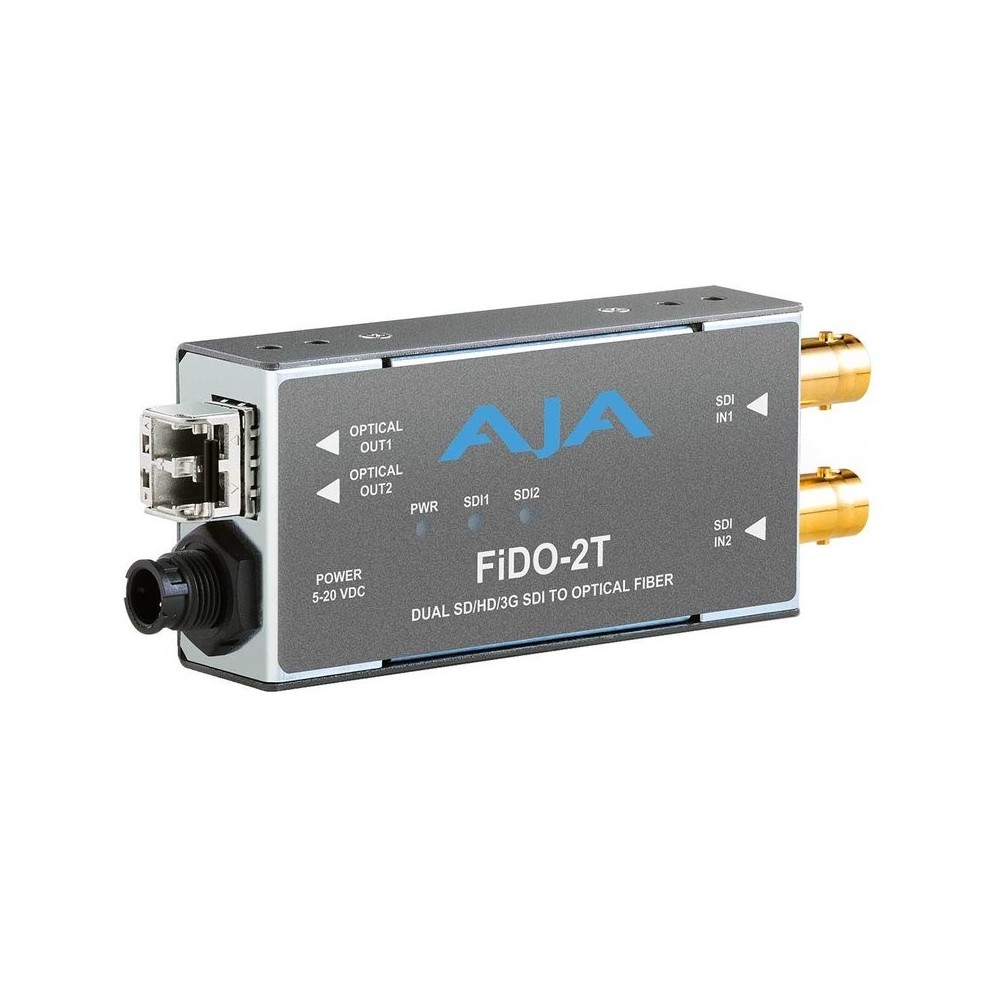

AJA FiDO-2T-MM 2-Ch 3G-SDI to MM LC Fiber Transmitter
AJA-FiDO-2T-MM
Double 3G/HD/SD-SDI to multimode fiber optic converter. LC connectors. Up to 700m over OM4 multimode fiber optic (300m over OM3)
€1,145.00
Tax excluded
1.385,45 €
Con IVA
2x SDI, HD-SDI or 3G-SDI over MM fibre optic converter with LC connectors
FiDO is a family of SDI to Fiber Optic converters. FiDO-2T-MM enables the transport of 2 SDI, HD-SDI and 3G-SDI channels at distances up to 700m over OM4 and 300m over OM3 multi-mode fiber optic cables using LC connectors, which is useful for eliminating ground loop problems. FiDO converters meet all SMPTE specifications and are rugged, versatile and suitable for indoor or outdoor use. They also use a compact, low-profile cabinet that works well in tight spaces around and behind equipment racks, trucks and cameras.
Features of AJA FiDO-2T-MM
- 2-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter
- Duplex connection (LC connector)
- Dual, independent 3G/HD/SD-SDI inputs
- Both SDI-to-Fiber paths are completely independent
- Uses 5-20VDC power (DWP-U-R1 universal power supply included)
- 5 year warranty
Data sheet
- Video Inputs
- SDI
- Outputs
- Optical Fiber
- Max. Video Resolution
- 625i / 525i - SD
1280x720 - HD
1920x1080 - HD - Power
- DC
- Transmisión
- Fibra óptica
- Range
- 700 m
Video Formats
- 150 Mbps - 3 Gbps, format agnostic
Video Input Digital
- 2-channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424
Video Output Digital
- 2-channel independent Multi-Mode LC Fiber Outputs, SMPTE-297
- Nominal Wavelength: 850 nm
- Optical Power: -7dBm (min), -2dBm (max)
- Extinction Ratio: 7.5dB (Typ)
Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- All other rates are passed through and not reclocked
Size (w x d x h)
- 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)
Weight
- 0.5 lb (0.3 kg)
Power
- 3 watts max
- Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)
