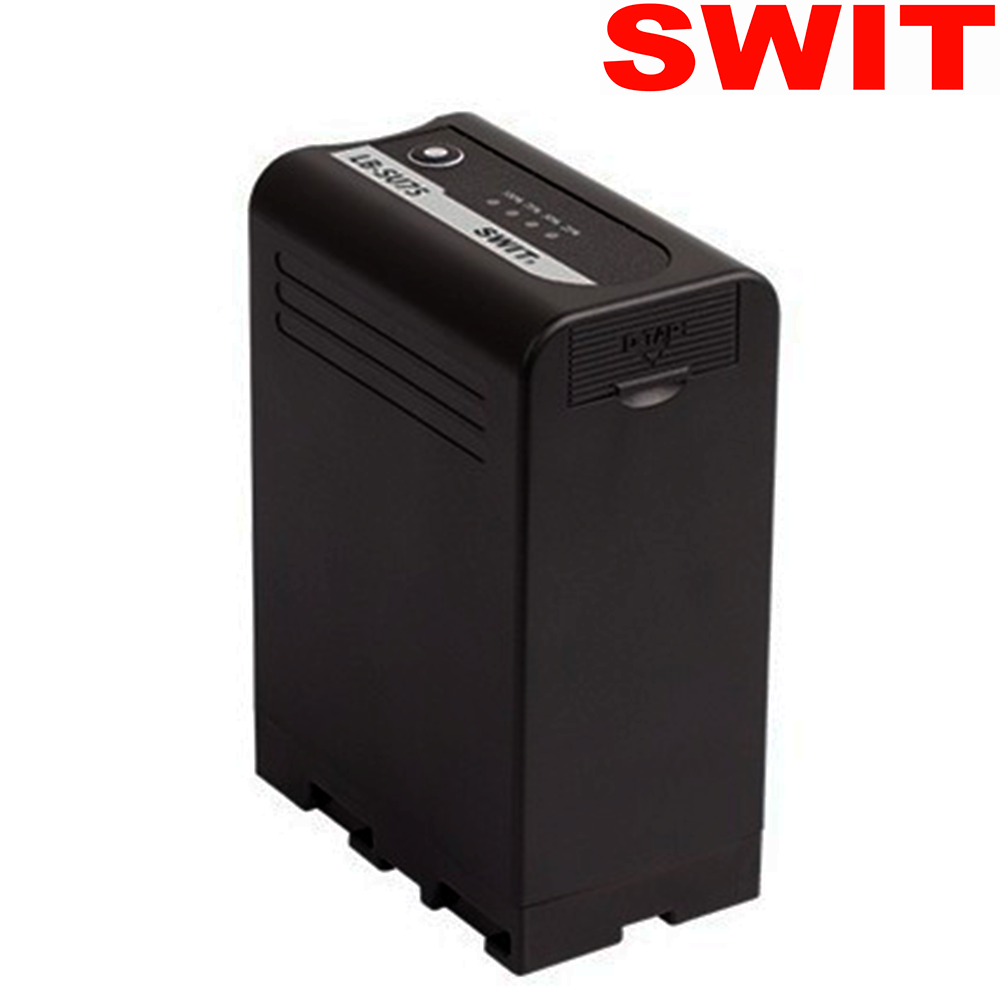

SWIT LB-SU75 DV type BP-U SONY 14.4V 75Wh Battery

Type SONY BP-U Battery

LB-SU75 from SWIT is the replacement battery for the Sony BP-U60, compatible with SONY PXW-FX9 / FS7 / FS5, PXW-Z280 / Z190 / X280 cameras.


75Wh / 5.2Ah High Capacity

With a nominal voltage of 14.4 V, the LB-SU75 has a capacity of 75 Wh / 5.2 Ah and can run approx. 2 hours 50 minutes in the SONY PXW-Z280 camera.

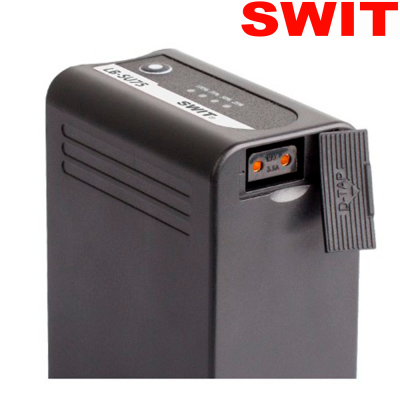

D-tap DC out put

On the side of the LB-SU75 battery there is a D-tap output socket for a 14.4 V DC connection (nominal). You can connect the camera's led torch, monitor or wireless transmitter to the D-tap socket and power them simultaneously with the camera. The maximum power of the D-tap is 50W / 4A.
The D-tap socket can also be used as a charging input with the portable charger SWIT PC-U130B / B2.

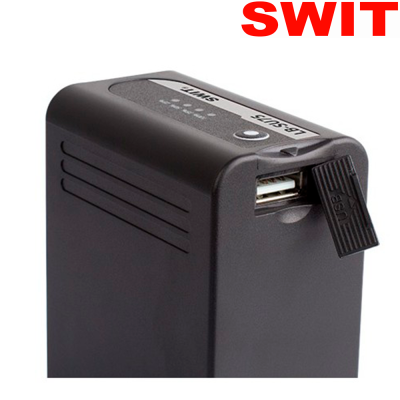

USB 5V/2A out put

LB-SU75 allows you to connect portable devices such as a mobile phone to the USB socket for charging, by pressing the power button the battery will start delivering 5V / 2A power to charge your devices.

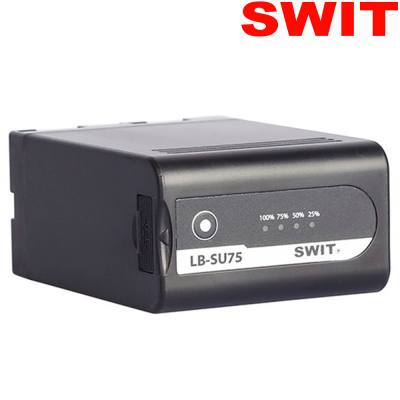

LED charge indicators

LB-SU75 battery has 4 LED charge indicators that allow you to check the remaining battery capacity before use, during use or during charging time.

Fast Charge

LB-SU75 can be charged in the SWIT S-3602U 2-channel charger or in the LC-D421 4-channel charger.  You can also use the D-tap SWIT PC-U130B / B2 portable charger to charge the LB-SU75 batteries.
With the S-3602U / LC-D421 chargers the completely empty battery will take approximately 3 hours and 30 minutes to charge to 100%.
With the PC-U130B / B2 charger, it will take 2 hours and 10 minutes to fully charge.

SWIT LB-SU75 Battery features

• 14.4V nominal voltage Li-ion battery
• Compatible with SONY BP-U batteries
• 75Wh / 5.2Ah capacity
• Built-in 14.4V D-tap output / Charging input
• Built-in 5V/2A USB output
• 4-level LED power indicator
• Multiple circuit protections
