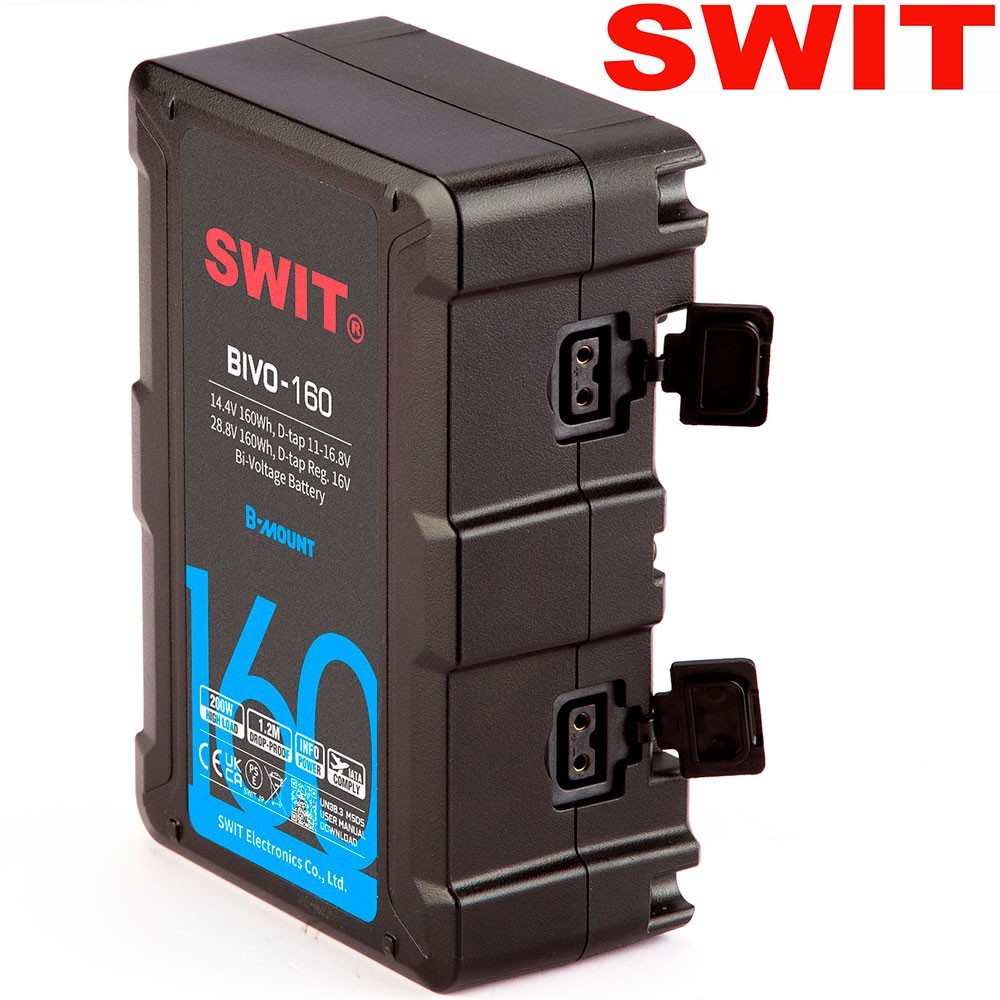

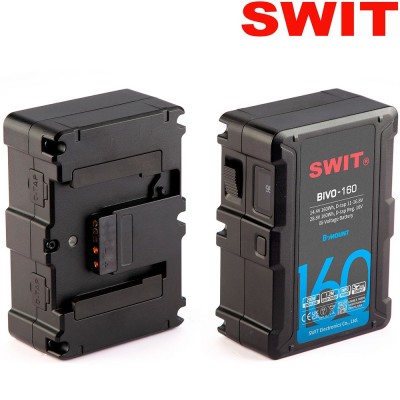

Swit BIVO-160 - 160Wh Bivoltage B-Mount battery


The BIVO-160 has 2 D-tap sockets to power all camera equipment:

• When the battery voltage is 14.4V, the D-tap outputs are 11-16.8V.
• When the battery is operating at 28.8V, the D-tap output is regulated to 16V.

The BIVO-160 camera battery has 4-level LED charge indicators and a separate blue LED to indicate battery voltage. When the battery is connected to the mounting plate B, the blue LED is on, which means that the battery is delivering a high voltage of 28.8V, and the blue LED is off, which means that the battery is delivering a normal voltage of 14.4V.

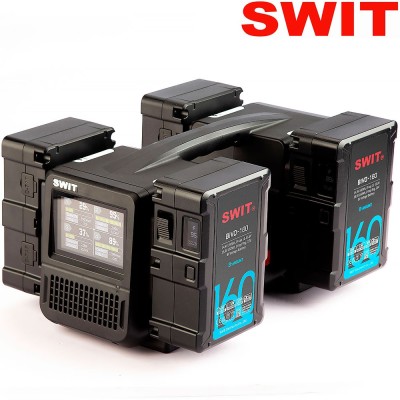

It is possible to charge 4x BIVO-160 at the same time on the B-plate charger SWIT PC-P461B, at 33.6V fast charge 100W. The charger takes approximately 2 hours 40 minutes to fully charge 4x BIVO-160 batteries.

Pressing the Power Check button twice will illuminate the LED torch on the back of the battery to help locate the B-mount plate in a dark production environment. Pressing the Power Check button again will turn off the light, or it will turn off automatically after 30 seconds.

The BIVO-160 battery can withstand a 1.2 metre drop from any angle. It is a robust and reliable camera battery for filmmakers.

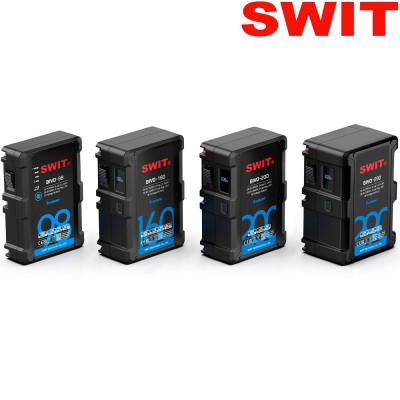

Swit BIVO dual voltage B-mount batteries are available in capacities of 98Wh, 160Wh, 196Wh and 290Wh. The different sizes and capacities allow for use in a lightweight portable stabiliser as well as for long-lasting power consumption.


Swit BIVO-160 Battery features

• Voltage: 28.8V (21.6-33.6V) AND 14.4V (10.8-16.8V)
• Capacity: 160 Wh
• Constant charge: (28.8V) 200W, 6A / (14.4V) 200W, 12A
• Fast charge: 33.6V and 100W
• Mounting type: B-mount
• D-tap socket ×2
  14.4V state 10.8-16.8V output, 200W charge
  28.8V state: 16V regulated output, 50W charge
• Charging Temperature: 0-40°C
• Discharge temperature -20°C-50°C (capacity and maximum load may decrease when used below 0°C)
• Net weight: Approx. 1.1kg
• Dimensions: 144×100×54mm
