Kiloview DC230 is a professional device for decoding IP audio and HD video streams. It decodes H.264 and supports the video transmission protocols NDI|HX2, SRT, RTSP, RTMP and RTP. It has 3G-SDI and DVI-I outputs, compatible with HDMI1.4. The device supports simultaneous decoding and output of 4 signals, from which the presentation of 1/2/3/4 decoded video channels can be flexibly selected at the output. It can preview 16 video streams in real time on the web console, and select the 4 streams to be displayed on the screen for playout.
Adopting intelligent delay control technology, it can achieve a decoding delay of less than 200ms. FPGA processing plus H.264 algorithm optimisation are used to support 10% network packet loss, ensuring clear, smooth and high quality playback.
Kiloview DC230 is a professional device for decoding IP audio and HD video streams. It decodes H.264 and supports the video transmission protocols NDI|HX2, SRT, RTSP, RTMP and RTP. It has 3G-SDI and DVI-I outputs, compatible with HDMI1.4. The device supports simultaneous decoding and output of 4 signals, from which the presentation of 1/2/3/4 decoded video channels can be flexibly selected at the output. It can preview 16 video streams in real time on the web console, and select the 4 streams to be displayed on the screen for playout.
Adopting intelligent delay control technology, it can achieve a decoding delay of less than 200ms. FPGA processing plus H.264 algorithm optimisation are used to support 10% network packet loss, ensuring clear, smooth and high quality playback.
Kiloview DC230 is a professional HD audio and video decoding device. It decodes from both encoder and IP camera. It accepts 4 video transmission channels (SRT, RTSP, RTMP or RTP,NDI||HX2) and outputs SDI/DVI-I (HDMI compatible).
DC230 supports simultaneous decoding and output of 4 network streams and can select 1/2/3/4 channels of video decoding and output on the screen flexibly.
Kiloview DC230 supports SRT and RTMP video stream decoding, HLS, TS over UDP, RTP, RTSP and other major network protocols such as NDI|HX 2, which greatly guarantees your video production experience.
Adopting intelligent delay control technology, it can achieve decoding delay less than 200ms.
FPGA processing + H.264 algorithm optimisation are used to resist 10% network packet loss, ensuring clear, smooth and high colour reproduction.
With the built-in RMTP server, the encoder can directly transmit the video source to Kiloview DC230 without the need for a third-party RTMP platform. This makes video transmission easier and more secure.
The output content of SDI and DVI(HDMI compatible) may or may not be the same.
The output screen can be a grid or in your style of display, such as split screen and picture-in-picture, dynamic 1/2/3/4 selection/split display. The video bit rate and resolution can also be customised to 100%.
DC230 supports "preview + output" mode, where 16 video streams can be previewed in real time on the web console, and 4 of them can be selected to be displayed on the screen for simultaneous output.
This function can also be used for tally control (PVW/PGM).
It supports both embedded and analogue audio coding. In addition, with the Kiloview voice intercom software (optional), it can realise multi-party voice intercom function.

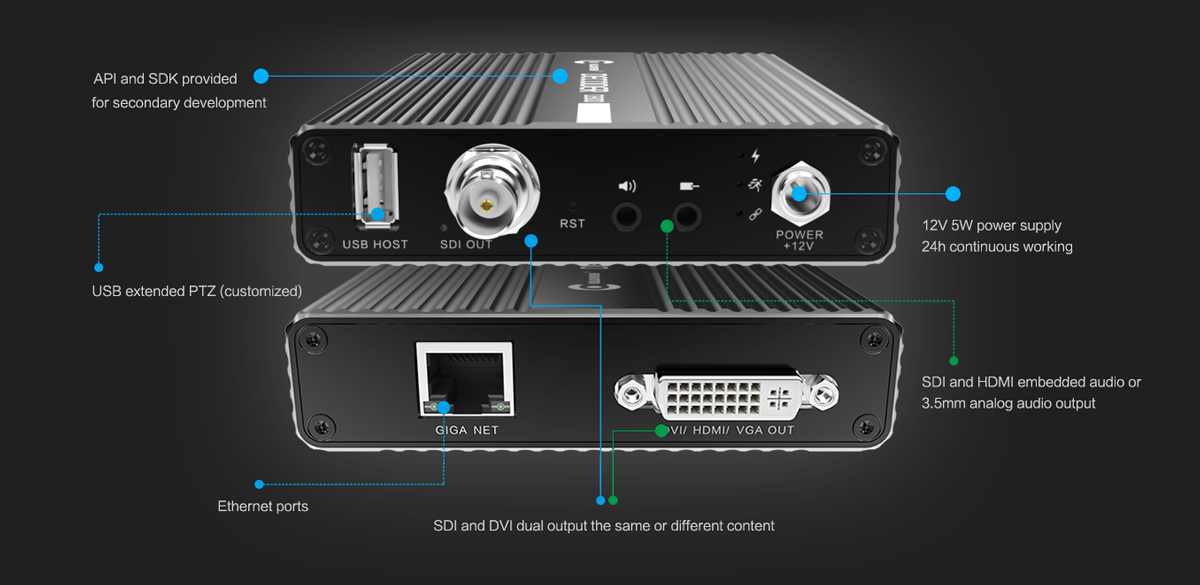

.jpg?1641998695579 "DC230-AVACAB-AUDIOVISUALES-DECODIFICADOR-MULTICANAL-NDI")
Data sheet
| Model | DC230 |
|---|---|
| Input | 1*100M/1000M RJ-45 adaptive Ethernet port |
| USB interface | 1*USB 2.0 Type-A |
| Video Output | 1*SDI, compatible with SD-SDI (270M), HD-SDI (1.485G),3G-SDI (2.97G); 1*DVI-I, compatible with HDMI1.4 and below/DVI 1.0/VGA |
| Output formats | SDI/DVI: up to 1080P60Hz; VGA: up to UXGA, details as below: SDI: 1080P60/59.94/50, 1080P30/29.97/25/24/23.98 1080i60/59.94/50, 720P60/59.94/50, 576i50, 480i60; HDMI/DVI: 1080P60/50, 1080P24/25/30, 1080I60/50, 720P60/50, compatible with VESA standard formats; VGA: 1080P, 720P, UXGA (1600x1200), SXGA (1280x1024), XGA (1024x768), SVGA (800x600), VGA (640x480) and other VESA formats. |
| Audio output | SDI/HDMI embedded or 3.5mm audio output |
| SDI Transmission Distance | Belden 1694A: SD SDI ≥ 350m; HD SDI ≥ 180m; 3D SDI ≥ 100m |
| Media transmission protocols | NDI|HX2/SRT/RTMP/HLS/TS over UDP/RTSP etc. protocols |
| Video decoding | H.264 |
| Audio decoding | AAC/G.711 |
| Decoding Latency | <200ms (adjustable) |
| Decoding ability | Up to 4 channels decoding simultaneous (4CH 1080P30 or 2CH 1080P60 and below） |
| Management | Web |
| Power supply/Consumption | 12V, 1A/5w |
| Operation temperature | -20℃~60℃ |
| Size | 138*105*27mm（5.43”*4.13”*1.06”） |
| Weight | 380g（13.4oz） |
