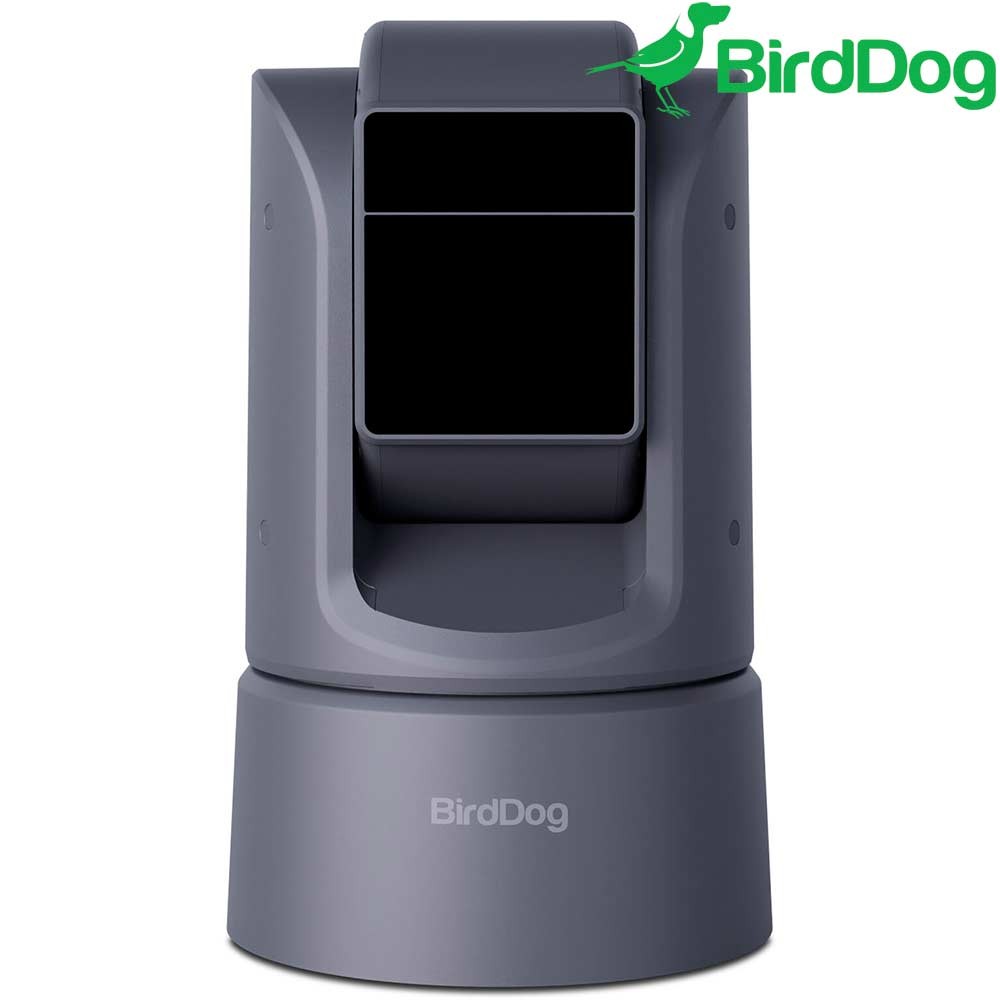

BirdDog O4 4K 30x Outdoor PTZ Camera with AI

The BirdDog outdoor PTZ camera is the ideal solution for capturing high-quality images in any outdoor environment. With its rugged design and cutting-edge features, this camera is ready to perform at its best in the most demanding projects.


A design that can withstand any weather

The O4 camera is built to withstand the most extreme conditions. Its cast aluminum body is IP66 certified, protecting it from dust and water. It also operates in a wide temperature range, from -40°C to 60°C (-40°F to 140°F). No matter if it's raining, snowing, or scorching hot, the O4 is always ready for action. For added protection, it includes a built-in heater that prevents condensation and lens fogging, ensuring a clear image at all times.


Unmatched image quality and performance

Capture crisp, color-accurate videos in 4K at 60fps thanks to its large 1/1.8" 8.4MP SONY CMOS sensor. This sensor, coupled with multi-exposure HDR technology, offers detailed control over color, gamma, and dynamic range, allowing you to match the style of high-end production cameras. Its 30x optical zoom lens (60x in HD) allows you to capture subjects at a great distance without losing quality.

At night, the O4 doesn't slow down. A powerful infrared laser emitter with a range of up to 500 meters and an automatic black and white mode ensure exceptional visibility in low or no light conditions.


Simple and flexible installation

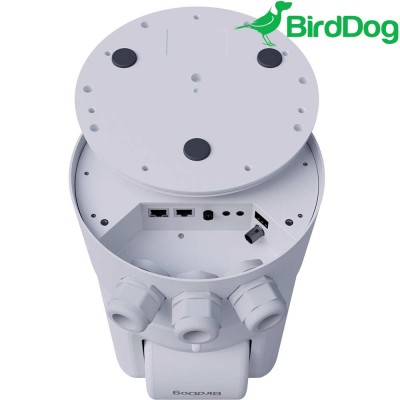

Unlike other outdoor PTZ cameras that complicate installation, BirdDog's O4 has been designed with user convenience in mind. All I/O connections are hidden in a sealed, weatherproof bottom compartment. With three tabs and a strain relief system, cables are protected and organized.

In addition, the O4 supports PoE++ (Power over Ethernet), simplifying installation by requiring a single cable for both power and data transmission. You can also use an external DC power supply if you prefer.


Maximum versatility in any workflow

The O4 adapts to almost any production setup. It supports simultaneous streaming in Full-NDI and NDI|HX3, and can also transmit NDI alongside protocols such as SRT, RTMP, or RTSP. With native 12G-SDI, HDMI, and SFP+ fiber connections, it integrates seamlessly into IP-based, hybrid, or traditional workflows.

To keep the action in frame at all times, the camera features a state-of-the-art AI tracking system. Its motion profiles are fully adjustable, allowing for fast tracking for sports or smoother, more cinematic tracking for events and ceremonies.

High-quality hydrophobic glass

The BirdDog O4 lens is made from aircraft-grade hydrophobic glass that repels water, dust, and dirt. This technology ensures that the optics always remain clean without the need for moving parts, eliminating smudges and streaks. The result is reliable performance and consistent visibility in any season, without the need for additional maintenance.


Total control and connectivity

The O4 offers multiple control and connectivity options to suit your workflow. You can manage it remotely through a wide range of protocols, including Visca, NDI, and RS-485. This allows you to easily integrate the camera into your production system, whether with hardware or software controllers.

For professional live production, the O4 integrates a Halo Tally system that visually indicates the status of the camera. The front Tally light illuminates red when the camera is on-air and green when it is in preview mode. This feature is essential for operators and talent to know at all times which camera is being used.


BirdDog O4 Features

Camera Specifications

• Image Sensor: Sony 1/1.8" CMOS sensor with 8.4 MP effective, designed for Ultra HD.
• Video resolution:

  • 4K: up to 2160p60 (3840 x 2160 at 60/59.94/50/30/29.97/25 fps).
  • HD: up to 1080p60 (1920 x 1080 at 60/59.94/50/30/29.97/25 fps) and 1080i (1920 x 1080 at 60/59.94/50 fps).
  • HD (other): 720p (1280 x 720 at 30/29.97/25 fps).

Lens:

• Optical zoom: 30x in 4K and 60x in HD.
• Digital zoom: 8x.
• Aperture: F1.35-F4.6.
• Horizontal viewing angle: 60° to 2°.
• Coating: Aircraft-grade hydrophobic glass lens, smudge-proof and moisture-proof.

Image features

• Image control: Precise control over color, gamma, wide dynamic range (WDR), and backlight compensation (BLC).
• Focus: Auto focus modes (Global, Center, Top, Bottom, Left, Right) and manual.
• Exposure: Auto, manual, shutter priority, iris priority, and brightness priority exposure modes.
• White balance: Auto, One Push, Indoor, Outdoor, Manual, and by color temperature.
• Noise reduction: 2D and 3D noise reduction.
• HDR: Support for High Dynamic Range (HDR) with REC.2020 color space.
• Night vision: Infrared (IR) laser with a range of up to 500 meters for true night vision, with IR cut filter and automatic black and white mode.

PTZ (Pan-Tilt-Zoom) movement

• Pan/Tilt rotation: Pan ±170°, Tilt -30° to +90°.
• Pan/Tilt control speed: 0.05-90° per second.
• Presets: 255 predefined positions.
• AI Tracking: State-of-the-art artificial intelligence tracking engine with adjustable motion profiles (fast for sports, smooth for events).


Connectivity and Protocols

• 1 x 12G-SDI.
• 1 x RJ45 (Ethernet).

• 1 x RJ45 Ethernet port (1 Gbps) with PoE++ support.
• 1 x SFP+ cage for fiber optics (module not included).

• Unbalanced stereo audio input and output (1/4" TRS).

• High bandwidth NDI (Full NDI).
• NDI|HX2 and NDI|HX3.
• SRT, RTMP, RTSP.

• NDI, VISCA-IP, RS-485.
• BirdDog 2.0 RESTful API.


Mechanical and power characteristics

• IP rating: IP66 (dustproof and pressure water jet resistant).
• Material: Die-cast aluminum body.
• Temperature range: -40°C to +60°C.
• Integrated heater: Prevents condensation and fogging.
• Power supply:

  • PoE++ (Power over Ethernet).
  • 24V DC input.
• Power consumption: 40W (max.).
• Tally system: Front tally with red (On-Air) and green (Preview) lights.
• Dimensions: 200 x 330 x 226 mm.
• Weight: 7.6 kg (body only).
