Are you ready to include video in your Dante setup? Using Dante AV-H and the latest auto-tracking capabilities, the PTZOptics Link 4K camera can be effortlessly integrated into the most sophisticated Dante design or workflow. The Link 4K combines broadcast quality with the simplest Dante detection, configuration and management, streamlining and perfecting any video production installation.
Dante AV-H powers the H.26x connection with Dante's device interoperability and capabilities. With Dante AV-H, you can handle all video and audio routing, configuration and device management through one easy-to-use platform.
Each Link 4K PTZ camera offers exceptional performance and flexibility, with SDI, HDMI, USB and IP outputs. The Link 4K supports 4K resolution at 60fps via HDMI, USB and IP and, thanks to Dante technology, also offers 1080p resolution at 60fps via Dante AV-H and SDI.
Equipped with automatic tracking capabilities, the 4K PTZ Link camera removes the need for additional software on another device, freeing production teams from the need for a camera operator. With 12x, 20x and 30x optical zoom options, Link 4K cameras can be seamlessly integrated into any production scenario.
Take control of your production from behind or in front of the stage with the Link 4K camera. Thanks to its automatic tracking capability, the Link 4K can focus on a specific person, even if there are others in the shot, and users can easily switch between presenters on stage with a single click. The Link 4K can track subjects up to 91 meters away (depending on the model).
In addition to the automatic tracking function, the Link 4K provides access via a web user interface, with an all-in-one menu that simplifies setup. In addition, almost every function in the Web UI includes a tutorial function, ideal for users navigating the settings for the first time.
PTZOptics Link 4K cameras can be controlled through a variety of video production software, such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster, as well as through hardware joystick controllers such as the IP joystick, serial joystick or SuperJoy. This wide range of camera control options provides the flexibility to manage the camera in the way that best suits your workflow.
In addition, Link 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI® and cloud-based software such as Zoom. Users can also stream directly, live, to content distribution networks such as Facebook and YouTube.

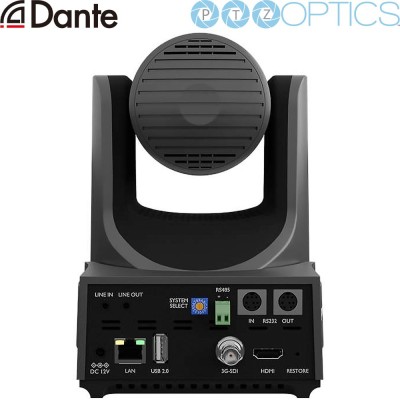

PTZOptics Link 4K 20x PTZOptics Link Camera features
- 60.7° horizontal field of view (12X)
- High low-light performance with wide dynamic range
- Ultra HD 3840x2160p resolutions up to 60 FPS
- 3D noise reduction with low noise CMOS sensor
- Serial (RS232 and RS485) and IP (LAN/WAN) control
- H.264, H.265 and MJPEG video compression when streaming over IP
- USB 2.0, HDMI 2.0 / 3G-SDI (HDMI and SDI are not simultaneous)
- PoE+ (Power over Ethernet) or 12 VDC power supply
- Directional microphone
- AI Video based automatic tracking
- Dante AV-H™ (limited to 1080p60)
- Photobooth compatible
- Integrated Tally light
