The Blustream MX44AVW is a multipurpose HDMI 2.0 video processing system, ideal for digital signage and retail environments. It has the capacity to operate in three essential modes. It can function as a seamless 4x4 matrix, allowing instant switching between its four inputs and outputs without interruption or delay. It is a powerful video wall processor that supports configurations with individual panel overlay and rotation, creating creative designs. Finally, it offers a multiviewer mode with designs such as PIP, POP, PBP, and quadruple, customizable for monitoring.
It supports high-performance specifications, including 4K UHD 60Hz 4:4:4 and HDR, ensuring maximum image quality. In addition to video, it manages all known HDMI audio formats, with simultaneous extraction to analog and optical outputs. Its control offers options via front panel, IR, RS-232, and a TCP/IP WebGUI.

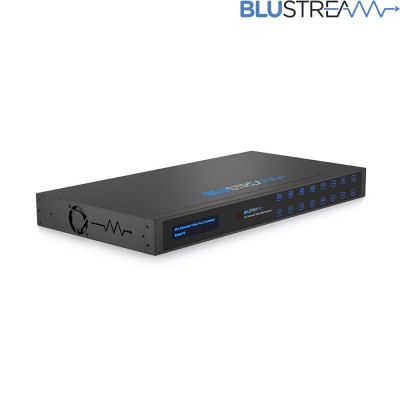

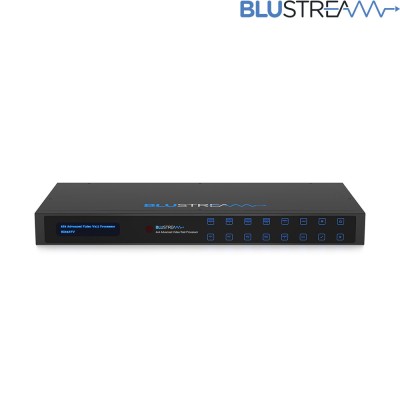

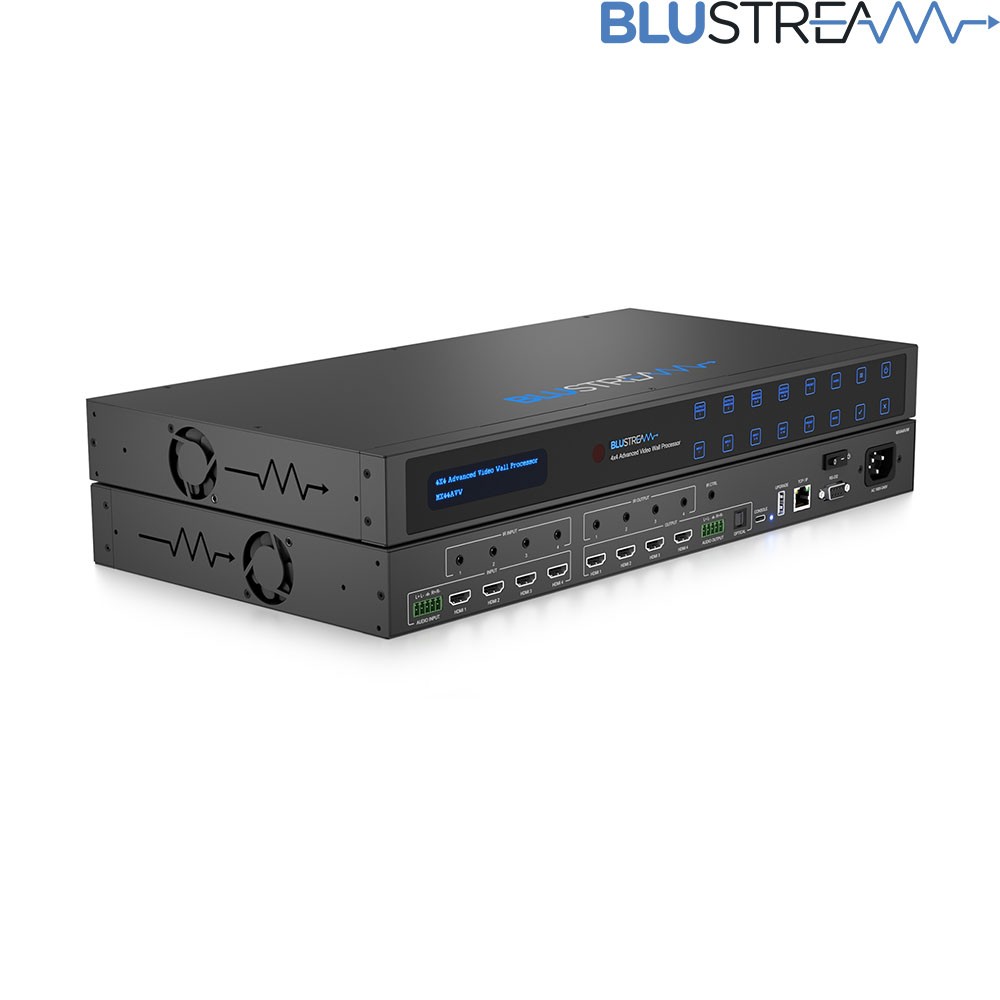

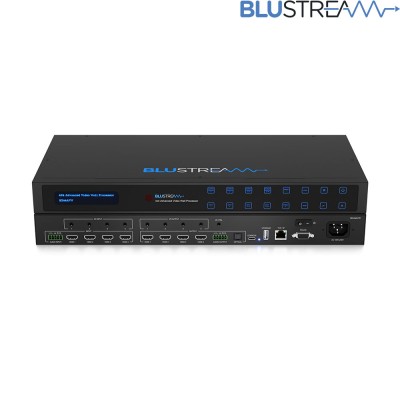

Blustream MX44AVW 4x4 HDMI 2.0 Video Wall Processor and Multiview
BLS-MX44AVW
The Blustream MX44AVW is a multipurpose HDMI 2.0 video processing system, ideal for digital signage and retail environments. It has the capacity to operate in three essential modes. It can function as a seamless 4x4 matrix, allowing instant switching between its four inputs and outputs without interruption or delay. It is a powerful video wall processor that supports configurations with individual panel overlay and rotation, creating creative designs. Finally, it offers a multiviewer mode with designs such as PIP, POP, PBP, and quadruple, customizable for monitoring.
It supports high-performance specifications, including 4K UHD 60Hz 4:4:4 and HDR, ensuring maximum image quality. In addition to video, it manages all known HDMI audio formats, with simultaneous extraction to analog and optical outputs. Its control offers options via front panel, IR, RS-232, and a TCP/IP WebGUI.
€2,510.00
Tax excluded
3.037,10 €
Con IVA
The Blustream MX44AVW is an advanced 4K HDMI 2.0 high-speed video processing system supporting three modes: 4x4 seamless matrix, creative video wall, and multiview presentation with PIP, POP, PBP and up to four window layouts. Achieve sophisticated, artistic or retail video wall arrangements with independent panel overlap and rotation. Designed for retail, showrooms and event installations, it delivers professional multi-screen content with seamless switching and custom layouts.
Key Features of MX44AVW
- 4K HDMI 2.0 high-speed processor: matrix, multiview and video wall modes
- Advanced video wall setup: individual panel overlap and rotation
- Multiview modes: PIP, POP, PBP, dual, triple and quad, customizable layouts
- Seamless switching without interruptions or delays
- Compatible with HDMI 2.0 up to 4K UHD 60Hz 4:4:4, HDR and HDCP2.2
- Supports all standard video formats: VGA-WUXGA and 480i-4K
- Supports HDMI multi-format audio: Dolby Atmos, TrueHD, Digital Plus, DTS-HD MA
- HDMI audio breakout to concurrent analogue L/R and optical (S/PDIF) outputs
- IR routing and control via front panel, IR, RS-232, TCP/IP and web GUI
- Advanced EDID management
- Includes Blustream IR receiver and remote control
- Standard 1U rack mounting kit included
Technical Specifications

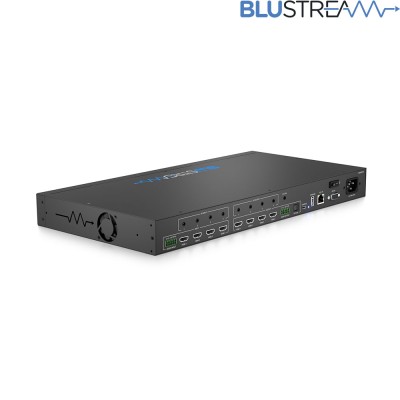

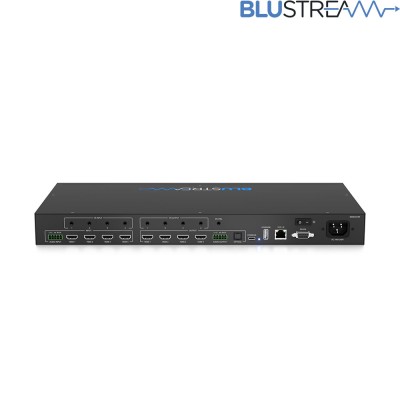

- Inputs: 4x HDMI Type A, 19 pins
- Outputs: 4x HDMI Type A, 19 pins
- Audio input: 5-Pin Phoenix (2 balanced/unbalanced channels)
- Audio output: optical S/PDIF and 5-Pin Phoenix balanced/unbalanced
- Control: RS-232 (DB-9 female), TCP/IP (RJ45), USB-C (console), USB-A (firmware)
- IR ports: 5x input 3.5mm stereo jack, 4x output 3.5mm mono jack
- Rack mounting: 1U height, ears included
- Dimensions: 440 x 240 x 44 mm (body); 440 x 245 x 44 mm (with connectors)
- Operating temperature: 0°C to 40°C; storage: -20°C to 60°C
- Internal power supply: 100-240V AC
Data sheet
- Video Inputs
- HDMI
- Outputs
- HDMI
- Scaler
- si
- Max. Video Resolution
- 625i / 525i - SD
1280x720 - HD
1920x1080 - HD
2048x1080 - 2K
3840x2160 - UHD
4096x2160 - 4K DCI - Entradas Audio
- Embebido
- Salidas Audio
- Embebido
No Balanceado
S/PDIF - Data and Control
- Ethernet
IR
RS-232
USB - Power
- DC
- Comunes
- Enracable
- Rack Units
- 1 RU
1.- What is the maximum video resolution supported by the MX44AVW matrix, and does it support HDR?
The Blustream MX44AVW processor supports 4K UHD 60Hz 4:4:4, which is the highest-performance HDMI 2.0 specification. Yes, it is **HDR compatible** (High Dynamic Range), ensuring maximum color and contrast quality.
2.- How many operating modes does the unit offer, and can they be switched easily?
It offers three main modes: 4x4 Seamless Matrix, Videowall Processor, and Multiview. Switching between these processing modes is fast and easily managed via the web interface (Web GUI) or control commands.
3.- Is the switching fully seamless (without delay or black screen) in the 4x4 Matrix mode?
Yes, the device is designed to be a fully seamless switching matrix. It uses an internal frame buffer to ensure that transitions between video sources are instantaneous, without glitches or black cuts.
4.- Does the Videowall mode allow screen rotation or bezel compensation?
Yes. The Videowall mode is flexible and allows artistic functions like image rotation (90, 180, and 270 degrees) on individual screens. It also includes bezel compensation for correct image visualization across screen frames.
5.- Does the Ethernet control port (TCP/IP) offer a web user interface (Web GUI)?
Affirmative. The main control and advanced configuration are performed via an intuitive WebGUI accessible through TCP/IP. This allows for remote management of processing modes, audio outputs, and videowall configuration.
6.- Does the unit have the capability to extract audio from HDMI sources to separate audio outputs?
Yes, the MX44AVW includes simultaneous L/R analog and optical audio outputs. It allows for audio extraction from any of the four HDMI inputs, independent of the video signal selected on the outputs.
7.- What types of multiview designs are predefined and what customization flexibility do they offer?
The Multiview mode includes standard designs such as PIP (Picture-in-Picture), POP (Picture-Outside-Picture), and quad views (4 simultaneous windows). It offers flexibility to adjust the size and position of the windows in the Web GUI.
8.- Which HDMI and HDCP versions are compatible on the inputs and outputs?
The matrix supports HDMI 2.0 on inputs and outputs. Regarding content protection, it is compatible with HDCP 2.2 and is also backward compatible with older HDCP versions.
9.- Does the Blustream MX44AVW include scaling functionality or a resolution converter?
Yes. It incorporates scalers on the outputs. This is essential for handling monitors or videowall processors that do not support the source's native resolution, ensuring the display always receives a compatible signal.
10.- Can the matrix be controlled via third-party control systems using RS-232 commands?
Definitely YES. In addition to Web GUI control, the unit features an RS-232 port for integration with professional external control systems (such as AMX or Crestron), using documented command sets.
