The SWIT monitor BM-U275HDR features a 27" 10-bit LCD display, which allows resolutions up to 3840x2160, even supporting 8K signals. This monitor supports 4K single link input, including 12G-SDI, HDMI2.0 or 12G-SDI via SFP transceiver, and also supports 4x 3G-SDI 4K quad link input, or 4x 12GSDI 8K quad link input.
SWIT BM-U275HDR features 1000 nits high brightness LED backlighting, 1000:1 contrast, 97.2% DCI-P3 colour gamut and H178°/V178° viewing angle.
The monitor allows 4 independent 4K signals to be played back in multi-view, ensuring efficient and quality monitoring, supporting mixed format input (12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3) and offers waveform measurement, vectorscope, audio measurement, EOTF and colour gamut selection for each input.
SWIT BM-U275HDR 27” 4K/8K HDR video monitor
SWT-BM U275HDR
The SWIT monitor BM-U275HDR features a 27" 10-bit LCD display, which allows resolutions up to 3840x2160, even supporting 8K signals. This monitor supports 4K single link input, including 12G-SDI, HDMI2.0 or 12G-SDI via SFP transceiver, and also supports 4x 3G-SDI 4K quad link input, or 4x 12GSDI 8K quad link input.
SWIT BM-U275HDR features 1000 nits high brightness LED backlighting, 1000:1 contrast, 97.2% DCI-P3 colour gamut and H178°/V178° viewing angle.
The monitor allows 4 independent 4K signals to be played back in multi-view, ensuring efficient and quality monitoring, supporting mixed format input (12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3) and offers waveform measurement, vectorscope, audio measurement, EOTF and colour gamut selection for each input.
€4,446.00
Tax excluded
5.379,66 €
Con IVA
Delivery in 1 - 2 days
The SWIT monitor BM-U275HDR features a 27" 10-bit LCD display, which allows resolutions up to 3840x2160, even supporting 8K signals. This monitor supports 4K single link input, including 12G-SDI, HDMI2.0 or 12G-SDI via SFP transceiver, and also supports 4x 3G-SDI 4K quad link input, or 4x 12G-SDI 8K quad link input.
SWIT BM-U275HDR features 1000 nits high brightness LED backlighting, 1000:1 contrast, 97.2% DCI-P3 colour gamut and H178° / V178° viewing angle.
It allows 4 independent 4K signals to be played back in multi-view, ensuring efficient and quality monitoring, supporting mixed format input (12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3) and offers waveform measurement, vectorscope, audio measurement, EOTF and colour gamut selection for each input.
SWIT BM-U275HDR monitor features
- 27-inch LCD Panel, 3840×2160 resolution
- 1000nits high bright LED backlight
- HLG/PQ/S-log3 HDR, Payload ID auto setting

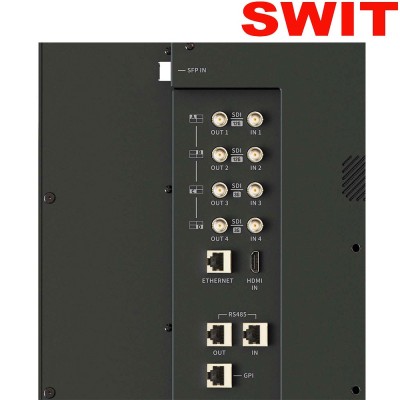

- 12G-SDI 4-in 4-out, 8K input ready, HDMI®2.0 input
- 12G-SDI via SFP Fiber input (Optional)
- ST2110 IP via SFP Fiber input (Optional)
- SFP Fiber 12G input converted to 12G-SDI out
- 3DLUT Auto Self-calibration without PC
- Audio/Video 0 latency for lip-sync
- Built-in Multi camera Delog LUTs
- User 3DLUTs upload via USB
- Waveform / Vector / Histogram
- Focus assist / False color / Zebra
- 16-ch audio meters / Lissajous
- IP webserver remote control
- TSL UMD and text TALLY display
- USB firmware upgrade
Data sheet
- Inches
- 27"
